Equipment -> Site

Each site represents an installation of a telephone system. It is possible for the Navigate UC Server software to connect to more than one telephone system simultaneously. An extra license is required to do this, and there are some limitations in terms of which telephone systems can be connected to in this way (see online for more details). For each site that is configured, a CTI Telephony service is automatically created.

This page contains the same options as the identically titled page in the installation wizard.

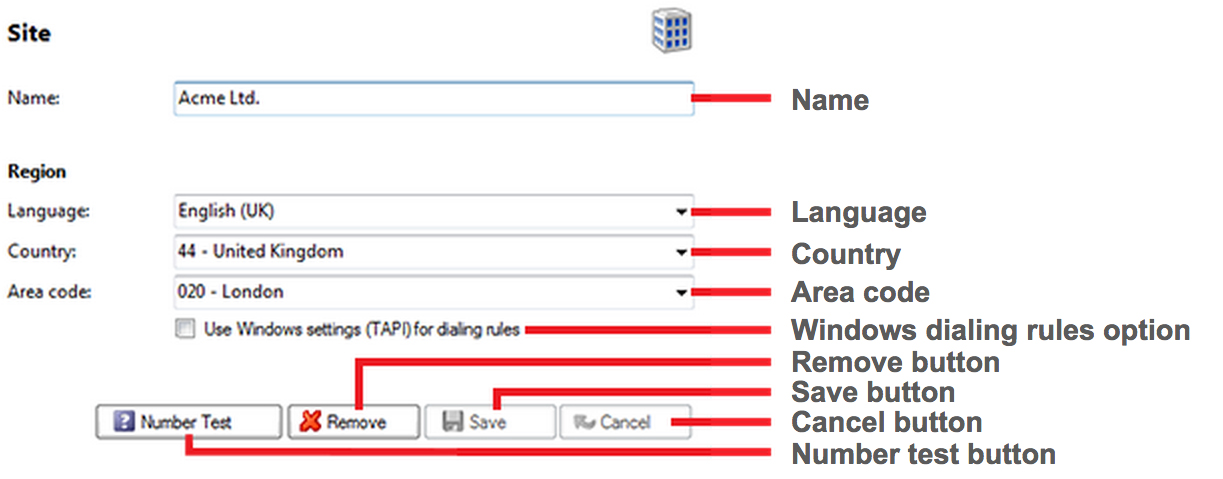

Name: The name is used for reference only.

Language: The ‘Language’ option allows you to choose the default language for server and client components. English (US) is the default option. Other language packs have to be installed before they can be used.

Country: The ‘Country’ box allows you to set your regional information. This is used when Navigate UC Server interprets telephone calls to understand dialled numbers.

Area code: The ‘Area code’ box allows you to refine your regional information. This is used when Navigate UC Server interprets telephone calls to understand dialled numbers.

Windows dialling rules option: If the “Use Windows settings (TAPI) for dialling rules” option is selected then the standard built in dialling rules will be overwritten with those available from within Windows. This option is not normally required and should only be selected if the built in dialling rules cannot be used to provide the required functionality. If it is selected then the system administrator must ensure the Windows dialling rules have been separately configured. A system reboot is normally required following configuration of Windows dialling rules.

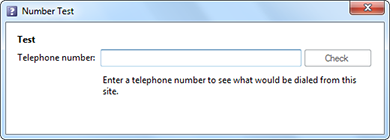

Number test button: Click this button to enter a telephone number and test how it would appear when dialling from this site.

Remove button: Click this button to permanently delete this record and close the window.

Save button: Click this button to save any new information that has been entered or edits that have been made and close the window.

Cancel button: Click this button to discard any new information that has been entered or edits that have been made and close the window.


Multiple Sites

Using the ‘(New site)’ page allows the addition of extra sites (license permitting). If the site happens to be in a different time zone the system will interpret the information stored in the Country and Area Code (e.g. 0081 92 code will be translated to as Japan, Fukuoka) and the local time will be displayed with all other call details.

Please note: when starting the configuration program, the option to use the wizard will not be presented if more than one site is configured.
